Category: GMAW-GTAW Solid wires
Type: Solid high nickel based wire for
cast iron and dissimilar welding.
Properties:
Nickel Iron based filler metal
for joint welding and claddings on cast Iron. Very wel suited also for
dissimilar welding between cast iron and high alloyed stainless and heat
resistant steels or mild steels. Excellent Weldabillity with extreme crack
resistance with a ductile weld deposit. Good welding and wetting
characteristics and high resistance against porosity. Very well suitable for
welding with robotics or automated processes..
Applications:
Cast Iron repairs, rebuilding
shafts, wheels, critical joints between steel and cast iron etc..
Product Details:
Chemical composition:
|
Grade
|
Chemical
composition(%)
|
|
NiFe
60
|
C
|
Si
|
Mn
|
S
|
P
|
Ni
|
Fe
|
|
≤0.1
|
≤0.8
|
≤1.0
|
≤0.01
|
≤0.02
|
≥60
|
Balance
|
Mechanical properties:
|
Tensile
Strength
|
Yield
Strength
|
Elongation
|
|
>350Mpa
|
>250Mpa
|
34%
|

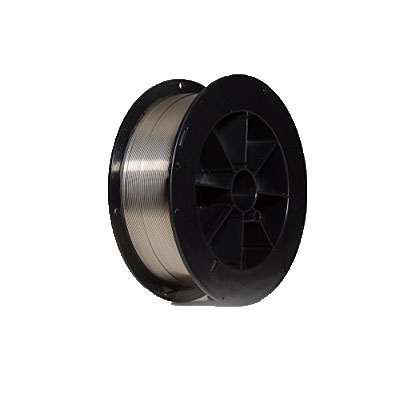

Welding paramaters/Packing:
|
Welding Parameters
|
Packing
|
|
D (mm)
|
Voltage (V)
|
Current (A)
|
spooling type
|
kg / spool
|
|
0.8
|
15-25
|
110-220
|
D 300
|
15
|
|
1
|
18-28
|
150-260
|
D 300
|
15
|
|
1.2
|
20-30
|
180-300
|
D 300
|
15
|
Specifications:
AWS A 5.15: E NiFe-C1; EN ISO 1071: SC NiFe-1; DIN: W.Nr. 2.4560; DIN NA
